Electric Control Valve

Electric actuated control valves for precise on-off and modulating control. Ideal for automated process systems requiring reliable electric actuation.

Product Lineup

AGE40

Electric On-Off Control Valve

Electric actuated control valve for reliable on-off service in automated process systems. Motor-driven actuator provides precise positioning.

Features

Electric motor-driven actuator
Fail-safe options available
Position feedback capability
Suitable for remote and automated operation

Specifications

Size	15A ~ 300A (0.5" ~ 12")
Pressure	JIS 10K ~ 40K, ANSI 150# ~ 900#, PN10 ~ 25
Temperature	-17°C ~ 230°C
Connection	Flanged / Wafer

Materials

Body	Ductile Iron, Cast steel, Stainless steel
Plug	STS 316 / Stellite
Seat	STS 316 / Stellite
Stem	STS 316 / 17-4PH

Download Catalog

AGE41

Electric Modulating Control Valve

Electric actuated modulating control valve for precise flow regulation. Provides proportional control with 4-20mA input signal.

Features

Proportional 4-20mA control signal
High positioning accuracy
Low power consumption
Self-diagnostic function

Specifications

Size	15A ~ 300A (0.5" ~ 12")
Pressure	JIS 10K ~ 40K, ANSI 150# ~ 900#, PN10 ~ 25
Temperature	-17°C ~ 230°C
Connection	Flanged / Wafer

Materials

Body	Ductile Iron, Cast steel, Stainless steel
Plug	STS 316 / Stellite
Seat	STS 316 / Stellite
Stem	STS 316 / 17-4PH

Download Catalog

Explore More

Other Products

Double Offset (2-Off Set) Butterfly Valve

Butterfly Valve

Concentric, double offset, triple offset, and PTFE-lined butterfly valves for reliable flow control in industrial applications.

View Details

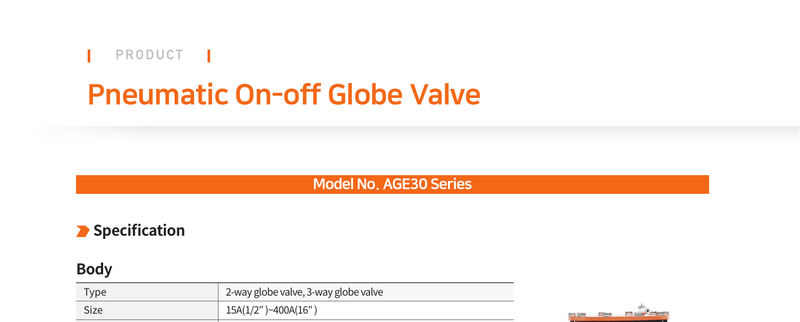

Pneumatic Control Valve
